The H-1020 was Hondo's high-end, Japanese-made Gibson "The Paul" copy. Part of the Professional Series, they were made by Matsumoku.

They also offered a Korean-made version, the Deluxe Series H-732.

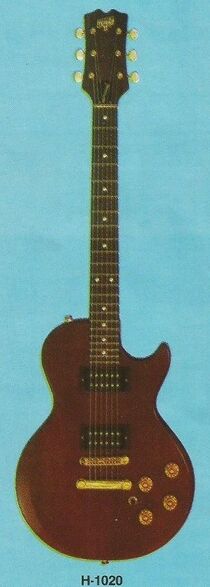

H-1020

80 H1020

1980 H-1020 (Walnut)

HD-1020 includes DiMarzio humbuckers.

  • 1980-1981

Body:

  • Solid Mahogany single-cutaway body
  • Arm contour
  • Belly carve

Neck:

  • Bolt-on Mahogany neck (sometimes three-piece Maple)
  • Rosewood fretboard with dot inlays (+ 1st fret inlay)
  • Color-matched Deluxe headstock
  • Silk-screened Script logo
  • 22 frets
  • 24 9/16" scale

Electronics:

  • Two MMK 45 ceramic humbuckers (11.8K)
  • Optional DiMarzio K-10s
  • 3-way switch
  • 2 Vol, 2 Tone
80 H1020 detail

Hardware:

  • Gold hardware
  • Brass nut
  • Enclosed, lubricated die-cast tuners
  • Gold "notched" speed knobs
  • Headstock-matching truss rod cover with "Professional" silkscreen
  • Tune-O-Matic bridge and stopbar tailpiece

Finishes:

  • Black
  • Walnut
  • Satin Walnut
  • Antique Brown Violin Sunburst
  • Rich Brown Tobacco Sunburst

H-1021

81 HD1021

1981 HD-1021 (Rich Brown Sunburst)

HD-1021 includes DiMarzio humbuckers.

  • 1981

Body:

  • Solid Mahogany single-cutaway body
  • Arm contour
  • Belly carve

Neck:

  • Set-in Mahogany neck (sometimes three-piece Maple)
  • Rosewood fretboard with dot inlays (+ 1st fret inlay)
  • Color-matched Deluxe headstock
  • Silk-screened Script logo
  • Silk-screened Sunrise logo
  • 22 frets
  • 24 9/16" scale

Electronics:

  • Two MMK 45 ceramic humbuckers (11.8K)
  • Optional DiMarzio K-10s
  • 3-way switch
  • Coil tap mini-switch
  • 2 Vol, 2 Tone

Hardware:

  • Gold hardware
  • Brass nut
  • Grover-style tuner buttons
  • Gold "notched" speed knobs
  • Headstock-matching truss rod cover w/ "Professional" silkscreen
  • Gold plated headstock-matching truss rod cover w/ engraved Sunrise logo
  • Tune-O-Matic bridge and stopbar tailpiece

Finishes:

  • Rich Brown Tobacco Sunburst
  • Gold Sunburst

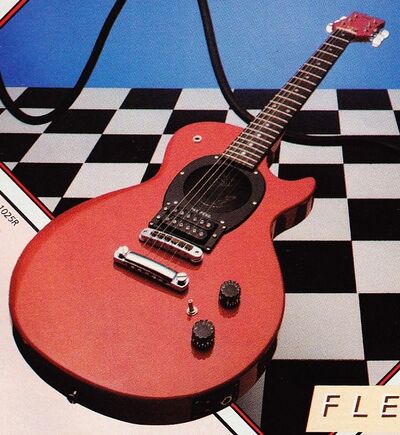

HP-1025 (The Nomad 3X)

82 HP-1025R

1982 HP-1025 (Red)

  • 1982-1983
  • $589.95 MSRP

Body:

  • Solid wood single-cutaway body
  • Arm contour
  • Belly carve

Neck:

Electronics:

  • One MMK 45 ceramic humbucker (11.8K)
  • Built-in amplification speaker
  • LED indicator on/off mini switch for speaker
  • AC, DC and 12 volt output jacks (AC & DC can be used simultaneously for overdrive)
  • Headphone jack
  • 1 Vol, 1 Tone

Hardware:

  • Chrome hardware
  • Schaller-style tuner buttons
  • Gold plated, headstock-matching truss rod cover
  • Black "notched" speed knobs
  • Tune-O-Matic bridge with brass saddles and stopbar tailpiece

Finishes:

  • Red
  • Black
  • Walnut
