The HF was introduced in 1989, based on the Aria Pro II FA, which Samick also built, and which is loosely in the style of the Gibson ES-175. While it may look very similar to the HJ at a glance, it has a differently shaped body with a 1" narrower lower bout, a 24.75" scale (to the HJ's 25.5"), and a deeper set neck with a flat fingerboard end.

Related:

HF-610

  • 1998

Body:

  • Spruce arched top
  • Walnut back and sides
  • Small body
  • Venetian cutaway

Neck:

  • Set-in Nato neck
  • Rosewood fingerboard with dot inlays
  • Deluxe headstock
  • Ornate Mother of Pearl Artist logo inlays
  • 14o headstock pitch
  • 22 frets
  • 24.75" scale

Binding:

  • Quadruple-ply body (front)
  • Triple-ply pickguard
  • Double-ply body (rear)
  • Single-ply f-holes and neck

Electronics:

  • One P-90 pickup (neck)
  • 1 Vol, 1 Tone

Hardware:

  • Gold hardware
  • 16:1 ratio lubricated, die-cast tuning machines
  • Pearloid raised pickguard
  • Headstock matching truss rod cover
  • Rosewood bridge with Harp tailpiece

Finishes:

  • Naural (N)

HFRG-302

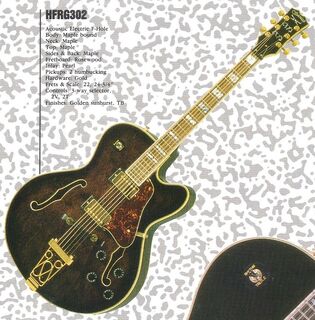

89 HF

1989 HFRG-302 TB (Vantage logo)

Some examples feature Vantage logo in 1989.

  • 1989-1990

Body:

  • Laminated Maple arched top, back and sides
  • 12" upper bout
  • 9 3/4" waist
  • 16 1/2" wide lower bout
  • 4" depth
  • Venetian cutaway
90 HFRG HS

Deluxe headstock & Vantage logo

Neck:

  • Set-in Maple neck
  • Rosewood fingerboard with Pearloid/Abalone split block inlays
  • Deluxe headstock
  • Ornate Mother of Pearl inlays
  • Mother of Pearl Wave logo or Vantage logo inlay
  • 14o headstock pitch
  • 22 frets
  • 24.75" scale

Binding:

  • Triple-ply body, neck and headstock
  • Single-ply f-holes

Electronics:

  • Two humbucker pickups
  • 3-way switch
  • 2 Vol, 2 Tone

Hardware:

  • Gold hardware
  • 16:1 ratio lubricated, die-cast tuning machines
  • 3-ply raised Tortoise shell pickguard
  • Triangular truss rod cover (1989)
  • Bell shaped truss rod cover (1990)
  • Black "notched" Speed knobs
  • Rosewood bridge with Trapeze tailpiece

Finishes:

  • Translucent Black (TB)
  • Golden Sunburst (GS)

Also branded as:

  • Aria Pro II FA
  • Cane 43-806

HF-650

  • 1991-1994

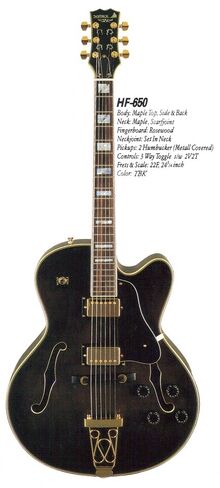

91 HF650

1991 HF-650 TBK

Body:

  • Laminated Maple arched top, back and sides
  • 12" upper bout
  • 9 3/4" waist
  • 16 1/2" wide lower bout
  • 4" depth
  • Venetian cutaway

Neck:

  • Set-in Maple neck
  • Rosewood fingerboard with Pearloid/Abalone split block inlays
  • Deluxe headstock
  • Ornate Mother of Pearl inlays
  • Mother of Pearl Wave logo inlay
  • 14o headstock pitch
  • 22 frets
  • 24.75" scale

Binding:

  • Triple-ply body, neck and headstock
  • Single-ply f-holes

Electronics:

  • Two humbucker pickups
  • 3-way switch
  • 2 Vol, 2 Tone

Hardware:

  • Gold hardware
  • 16:1 ratio lubricated, die-cast tuning machines
  • 3-ply raised pickguard
  • Bell shaped truss rod cover (1991)
  • Pointed bell shaped truss rod cover (1992-1993)
  • Headstock matching truss rod cover (1993-1994)
  • Black "notched" Speed knobs
  • Rosewood bridge with Trapeze tailpiece

Finishes:

  • Translucent Black (TBK)
  • Golden Sunburst (GS)

Also branded as:

  • Aria Pro II FA
  • Cane 43-806

HF-650 (Artist Series)

  • 1995-2001
HF-650 nat

2001 HF-650 N

Body:

  • Laminated Maple arched top, back and sides
  • 12" upper bout
  • 9 3/4" waist
  • 16 1/2" wide lower bout
  • 4" depth
  • Venetian cutaway

Neck:

  • Set-in Maple neck
  • Rosewood fingerboard with Pearloid/Abalone split block inlays
  • Deluxe headstock
  • Ornate Mother of Pearl Artist logo inlays
  • 14o headstock pitch
  • 22 frets
  • 24.75" scale
HF-650 GS body

2001 HF-650 GS

Binding:

  • Triple-ply body, neck and headstock
  • Single-ply f-holes

Electronics:

  • Two humbucker pickups
  • 3-way switch
  • 2 Vol, 2 Tone
HF-650 TSB body

1997 HF-650 TSB

Hardware:

  • Gold hardware
  • 16:1 ratio lubricated, die-cast tuning machines
  • 3-ply raised pickguard
  • Headstock matching truss rod cover
  • Black "notched" Speed knobs
  • Rosewood bridge with Trapeze tailpiece (1995-1997)
  • Rosewood bridge with Harp tailpiece (1998-2001)

Finishes:

  • Translucent Black (TBK)
  • Golden Sunburst (GS)
  • Tobacco Sunburst (TSB)
  • Antique Violin Sunburst (AV)
  • Natural (N)

Also branded as:

  • Aria Pro II FA

HFB-490

HFB-590

HFB-590 PBE

HFB5-639

Fretless model HFB5-639 FL also available.

HFB-690 R

HFB5-690 RB

Fretless model HFB5-690 RB/FL also available.

Meriken GR-FA (Japanese Market)

The GR-FA is a variant of the HF body, inspired by the Gretsch White Falcon.

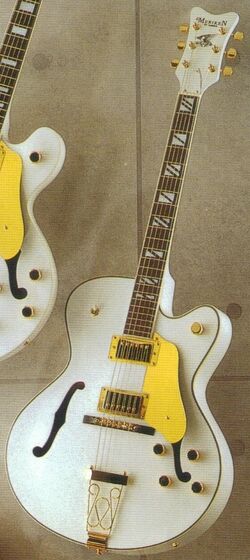

90 GRFA

1990 GR-FA W

  • ¥65,000 Yen / ~$459 USD (1989)

Body:

  • Laminated Maple arched top, back and sides
  • 16" wide bout
  • Venetian cutaway

Neck:

  • Set-in Maple neck
  • Rosewood fingerboard with Pearloid split block inlays
  • Gretsch style headstock
  • Silk-screened Meriken logo
  • Silk-screened Eagle graphic
  • 14o headstock pitch
  • 23 frets (including zero fret)
  • 24.75" scale

Binding:

  • Triple-ply body, neck and headstock
  • Single-ply f-holes

Electronics:

  • Two humbucker pickups
  • 3-way switch
  • 2 Vol, 2 Tone, 1 Master Vol

Hardware:

  • Gold hardware
  • 16:1 ratio lubricated, die-cast tuning machines
  • Gold plated pickguard, pickup mounting rings
  • Wide fish shaped truss rod cover
  • Gold metal knobs
  • Tune-O-Matic bridge with Rosewood base and Trapeze tailpiece

Finishes:

  • White (W)

WF-65 (Japanese Market)
