The T models, introduced in 1988 for the Japanese market and 1990 internationally, were Samick's Fender Telecaster style models. It was based on the Hondo H-757 and initially featured a headstock design unique to this model. In 1991, the body shape was re-designed for a more modern look. In 1993, it returned to a more direct copy of the Tele shape and now featured the same headstock as the S (Strat style). In 1995, it became part of the Artist Series.

Related:

TORB-120

90 TORB-120

1990 TORB-120 B

Based on the TLJ-2S
  • 1990

Body:

  • Solid Alder body

Neck:

  • Bolt-on Rock Maple neck w/ scarf joint
  • Rosewood fretboard w/ dot inlays
  • Angled headstock
  • Silk-screened Vantage logo
  • Silk-screened Wave logo
  • 22 frets
  • 25.5" scale

Binding:

  • Single-ply body (front) and neck

Electronics:

  • Two high output ceramic single coil pickups
  • Molded plastic pickup covers
  • 2-way mini-switch
  • 1 Vol, 1 Tone

Hardware:

  • Black hardware
  • 16:1 ratio lubricated, die-cast tuning machines
  • Triangular truss rod cover
  • Metal knobs
  • Vintage style fixed bridge

Finishes:

  • Black (B)

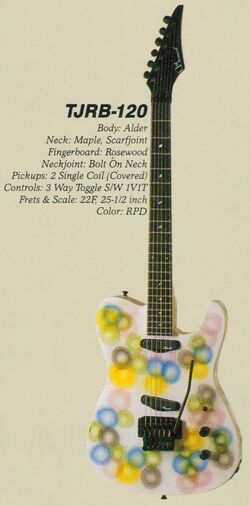

TJRB-120

90 TJRB-120

1990 TJRB-120 RPD

  • 1990

Body:

  • Solid Alder body

Neck:

  • Bolt-on Rock Maple neck w/ scarf joint
  • Rosewood fretboard w/ Saturn inlays
  • Angled headstock
  • Silk-screened Vantage logo
  • Silk-screened Wave logo
  • 22 frets
  • 25.5" scale

Binding:

  • Single-ply body (front) and neck

Electronics:

  • Two high output ceramic single coil pickups
  • Molded plastic pickup covers
  • 2-way mini-switch
  • 1 Vol, 1 Tone

Hardware:

  • Black hardware
  • 16:1 ratio lubricated, die-cast tuning machines
  • Triangular truss rod cover
  • Metal knobs
  • "KKT-2" licensed Floyd Rose 2-point tremolo
  • Locking nut

Finishes:

  • Black (B)
  • Rainbow Polka Dot (RPD)

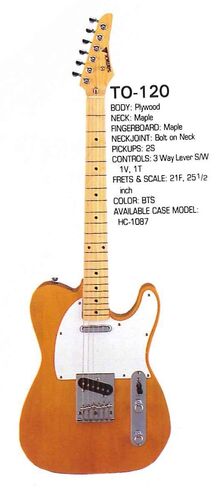

TO-120

93 TO-120

1993 TO-120 BTS

Body:

  • Laminate body construction
  • Solid Ash body (AN)

Neck:

  • Bolt-on Rock Maple neck
  • Rosewood "skunk stripe"

Electronics:

  • Two single coil pickups (Lipstick style at neck)
  • 3-way switch
  • 1 Vol, 1 Tone
94 TO bridge-lipstick

Hardware:

  • Chrome hardware
  • 16:1 ratio lubricated, die-cast tuning machines
  • 3-ply pickguard
  • Metal knobs
  • Individually adjustable vintage Tele-style tailpiece

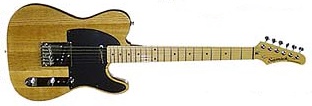

00 TO-120

2000 TO-120 AN

Finishes:

  • Butterscotch (BTS)
  • Yellow (Y)
  • Natural Ash (AN or N)

Related:

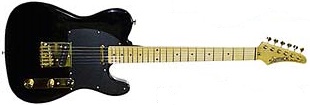

TO-320

00 TO-320

2000 TO-320 BK

Same as TO-120, but with solid Alder body and gold hardware.

Finishes:

  • Black (BK)

TO-345

00 TO-345

2000 TO-345 N

Body:

  • Semi-hollow Ash body

Neck:

  • Bolt-on Rock Maple neck
  • Rosewood "skunk stripe"
  • Maple fretboard w/ dot inlays
  • Rounded headstock
  • Silk-screened Artist logo
  • Bullet style truss rod
  • 21 frets
  • 25.5" scale

Binding:

  • Single-ply body (front) and f-hole

Electronics:

  • One ceramic "Lipstick" single coil, one humbucker
  • 3-way switch
  • 1 Vol, 1 Tone

Hardware:

  • Gold hardware
  • 16:1 ratio lubricated, die-cast tuning machines
  • 3-ply Pearloid pickguard
  • Metal knobs
  • Vintage style fixed tailpiece

Finishes:

  • Natural (N)

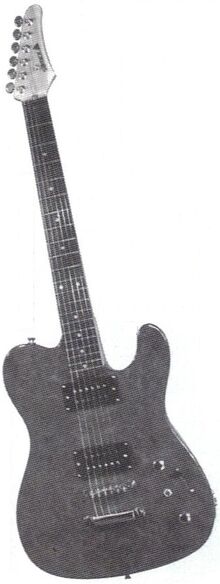

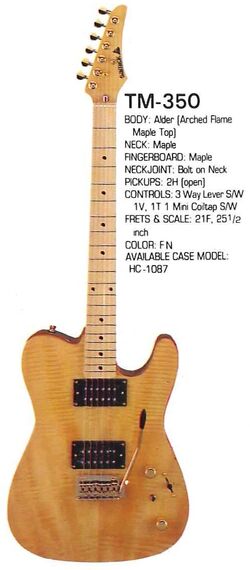

TM-350

93 TM-350

1993 TM-350 F N

TM-350 A features Ash body.

TM-350 F features flame Maple veneer & tremolo.

TM-350 BU features Bubinga top.

Body:

  • Solid Ash body w/ arched top (A)
  • Solid Alder body w/ arched top, flame Maple veneer (F)
  • Solid Alder body w/ arched top, Bubinga veneer (BU)

Neck:

  • Bolt-on Rock Maple neck
  • Rosewood "skunk stripe"

Electronics:

  • Two ceramic humbuckers
  • 3-way switch
  • Coil tap mini-switch
  • 1 Vol, 1 Tone

Hardware:

  • Gold hardware
  • 16:1 ratio lubricated, die-cast tuning machines
  • Metal knobs
  • Vintage style fixed bridge (A)
  • Vintage style 2-point tremolo (F)
  • Tune-O-Matic style bridge w/ stopbar tailpiece (BU)

Finishes:

  • Natural (N)

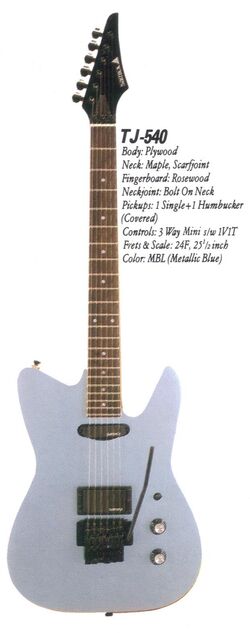

TJ-540

91 TJ-540

1991 TJ-540 MBL

  • 1991-1992

Body:

  • Laminate body construction

Neck:

  • Bolt-on Rock Maple neck w/ scarf joint
  • Rosewood fretboard w/ dot inlays
  • Angled headstock
  • Silk-screened Wave logo
  • 22 frets
  • 25.5" scale

Binding:

  • Single-ply body (front) and neck

Electronics:

  • One high output ceramic single coil and humbucker
  • Molded plastic pickup covers
  • 3-way mini-switch
  • 1 Vol, 1 Tone

Hardware:

  • Black hardware
  • 16:1 ratio lubricated, die-cast tuning machines
  • Triangular truss rod cover
  • Black reflector knobs
  • "KKT-2" licensed Floyd Rose 2-point tremolo
  • Locking nut

Finishes:

  • Black (B)
  • Pearl White (PW)
  • Metallic Silver (MS)
  • Metallic Blue (MBL)
  • Metallic Dark Blue (MDB)
  • Translucent Blue (TBL)
  • Tobacco Sunburst (TSB)

TJ-541

Same as TJ-540, but with coil tap mini-switch.

TL-650 K

95 TL650

1994 TL-650 K N

  • 1994-1995

Body:

  • Kusu body w/ arched top
  • Quilt Maple veneer

Neck:

  • Bolt-on Bird's Eye Maple neck
  • Rosewood "skunk stripe"

Electronics:

  • Two ceramic humbuckers
  • 3-way switch
  • Coil tap mini-switch
  • 1 Vol, 1 Tone

Hardware:

  • Gold hardware
  • 16:1 ratio lubricated, die-cast tuning machines
  • Metal knobs
  • Tune-O-Matic style bridge w/ stopbar tailpiece

Finishes:

  • Natural "Oyster" (N)

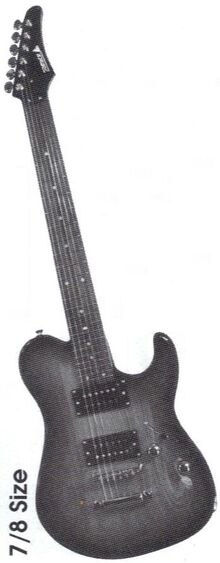

TRL-650

95 TRL650

1994 TRL-650 VS

  • 1994-1995

Body:

  • 7/8 scale solid Alder body
  • Arm contour
  • Belly carve
  • Recessed heel

Neck:

  • Bolt-on "Bird's Eye" Maple neck
  • Rosewood "skunk stripe"

Electronics:

  • Two ceramic humbuckers
  • 3-way switch
  • 1 Vol, 1 Tone

Hardware:

  • Gold hardware
  • Grover Rotomatic tuning machines
  • Wide fish shaped truss rod cover
  • Recessed metal knobs
  • Tune-O-Matic style bridge w/ stopbar tailpiece

Finishes:

  • Vintage Sunburst (VS)

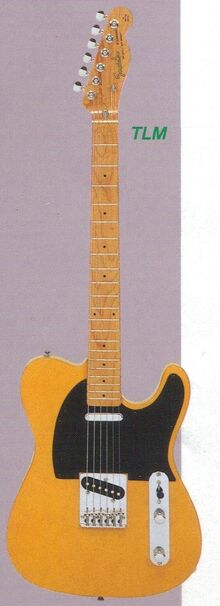

TL (Japanese Market)

90 TLM

1990 TLM BTS

TLM features Maple fretboard.

  • ¥28,000 Yen (1988 MSRP)
  • ¥32,000 Yen (1990 MSRP)

Body:

  • Laminate body construction

Neck:

  • Bolt-on Maple neck
  • Rosewood "skunk stripe"
  • Rosewood fretboard w/ small dot inlays
  • Maple fretboard w/ small dot inlays (TLM)
  • Gloss finish
  • Silk-screened First Runner logo (1988-1989)
  • Silk-screened Spaghetti logo (1990-1991)
  • Bullet style truss rod
  • 21 frets
  • 25.5" scale

Electronics:

  • Two single coil pickups (Lipstick style at neck)
  • 3-way switch
  • 1 Vol, 1 Tone

Hardware:

  • Chrome hardware
  • 16:1 ratio lubricated, die-cast tuning machines
  • Single-ply pickguard
  • Metal knobs
  • Individually adjustable vintage Tele-style tailpiece

Finishes:

  • Black (B)
  • White (W)
  • Butterscotch (BTS)

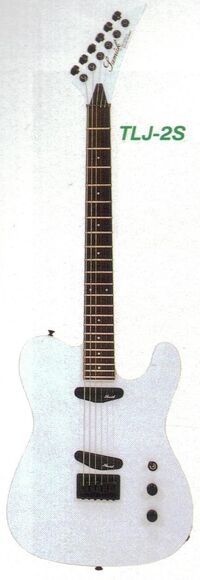

TLJ (Japanese Market)

90 TLJ-2S

1990 TLJ-2S W

TLJ-2S features two single coil pickups.

TLJ-SH features one single coil, one humbucker.

  • ¥35,000 Yen (1990 MSRP)

Body:

  • Laminate body construction

Neck:

  • Bolt-on Rock Maple neck w/ scarf joint
  • Rosewood fretboard w/ small dot inlays
  • Angled, color-matched Jackson headstock
  • Silk-screened First Runner logo
  • Gibson style nut
  • 22 frets
  • 25.5" scale

Binding:

  • Single-ply body (front) and neck

Electronics:

  • Two ceramic single coil pickups (2S)
  • One ceramic single coil, one humbucker (SH)
  • Molded plastic pickup covers
  • 2-way mini-switch (2S)
  • 3-way lever switch (SH)
  • Front-mounted controls (SH)
  • 1 Vol, 1 Tone

Hardware:

  • Black hardware
  • 16:1 ratio lubricated, die-cast tuning machines
  • Single-ply pickguard (SH)
  • Triangular truss rod cover
  • Metal knobs
  • Vintage style fixed bridge

Finishes:

  • Black (B)
  • White (W)

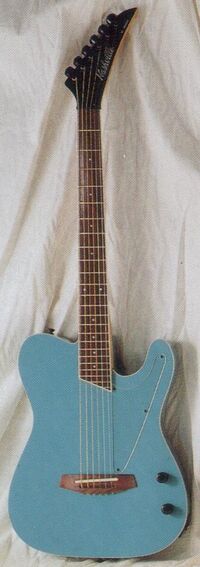

FP/TL-1 (Japanese Market)

90 FP-TL-1

1990 Nashville FP/TL-1 TG

Branded as Samick and Nashville.

FP/TL-2 features Piezo pickup.

  • ¥38,000 Yen (1988 MSRP)
  • ¥35,000 Yen (1990 MSRP)
  • ¥38,000 Yen (1990 TL-2 MSRP)

Body:

  • Hollow Basswood body

Neck:

  • Bolt-on Rock Maple neck w/ scarf joint
  • Rosewood fretboard w/ small dot inlays
  • Angled Jackson headstock
  • Silk-screened First Runner logo
  • Silk-screened Nashville logo
  • Gibson style nut
  • 24 frets
  • 25.5" scale

Binding:

  • Single-ply body (front) and neck

Electronics:

  • Ceramic under-saddle pickup
  • Piezo under-saddle pickup (TL-2)
  • 1 Vol, 1 Tone

Hardware:

  • Black hardware
  • 16:1 ratio lubricated, die-cast tuning machines
  • Clear acrylic pickguard
  • Triangular truss rod cover
  • Metal knobs
  • Rosewood bridge w/ plastic saddle

Finishes:

  • Black (B)
  • White (W)
  • Grey
  • Metallic Dark Blue (MDB)
  • Turquoise Green (TG)
  • Pink (P)
  • Black Crackle on Red body (CKBR)

TL-3 (Japanese Market)

MTL (Japanese Market)

TLJ-PJ (Japanese Market)
